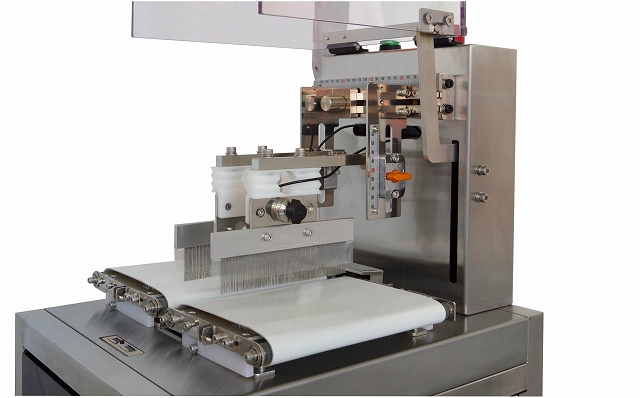

Pinhole detection machine for food industry “Torerude”

Lightweight, compact pinhole detection machine for food industry

  • Model:Torerude
  •
  • Manufacturer:Joven Electric
  • Future-upgradable
  • Easy electrode replacement
  • Easy belt replacement

Advantage

Torerude is a non-destructive pinhole detection machine for hermetically sealed packages containing liquid products such as soup, sauce and cooking ingredients for food industries.



Because of unique Voltage-applying method, Torerude realizes lower voltage detection. This gives little damage not only to inside products but also to outside packaging film. Our patented electrodes allow whole surface inspection for the products.



【Main features】

・Non-destructive inspection available.

・Thanks to unique Voltage-applying method, inspection is made with lower voltage than others.

・Whole surface inspection available with patented electrodes.

・Compact design with smaller footprint.

・Easy parts change method.



Specification

 Standard typeWide conveyer belt type
CapacityBelt speed10 ~ 45m/min adjustable
Applied voltage1kV ~ 10kV(Per 1kV)
Detectable level1LV ~ 10LV(Per 1LV)
Detection accuracyOver 100μm
Detection channelSingle channel
Detectable areaEntire surface area
SpecificationApplicable sizeProduct length 65mm ~(docked with dispensing belt up to 250m)
DimensionsW330mm(including base W426mm)×D460mm×H1100mmW330mm
(including base W426mm)×D510mm×H1100mm
Conveyor belt width200mm250mm
WeightApprox. 60kgApprox. 70kg
Power supply2φ3W(with ground) AC100V 50/60Hz
Power consumption200VA
