Packaging machineCartoner
Vertical, intermittent cartoner PRONT-01
“Table-top”cartoner very easy to operate
- Model:PRONT-01
- Manufacturer:Mutual Corporation
Advantage
・One-man, easy operation suitable for a variety of products
・Simple design thoroughly eliminating waste for space-saving, with movable casters
・Optimum component layout and wiring, easy access to inside with all covers fully opened
・Minimum necessary parts and carton holders easy to change over with a single touch
・All timing adjustments by easy operation onto touch screen
・Flap insertion ensured by unique carton closure system at one station

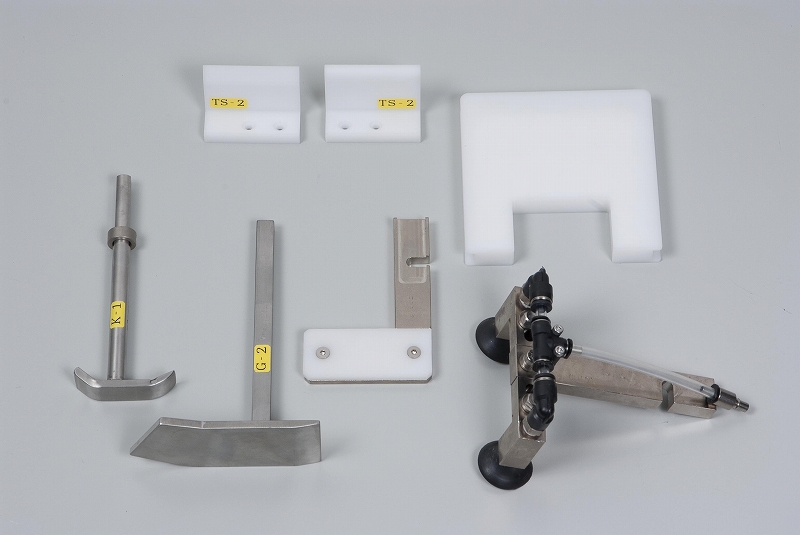

・Format parts also minimized
Specification
Applicable product | Pharmaceutical products, cosmetics, foodstuff and miscellaneous goods |
---|---|
Product shape | Bottle, tube, flow-pack etc. |
Speed | 20 to 40 strokes/min. |
Carton dimensions | L60 to 200 mm W30 to 80 mm H20 to 80 mm (Bigger cartons may be applicable upon request.) |
Carton type | Aeroplane tuck-in, Reverse tuck-in, Four-flap |
Option | Ink/emboss coder, hot-melt glue applicator, detection device |
Machine dimensions | L1,500×W980×H1,400 mm |
Machine weight | Approx. 200 kgs. |
Power supply | 200 V, 50/60 Hz, three phases |
Power consumption | 0.6 kW(5.1 kW with hot-melt gluer applied) |
Compressed air | 0.5 MPa, 100 NL/min. |
