Packaging machineCartoner
Automatic intermittent motion horizontal cartoner PG
Wide range of carton dimensions applicable
- Model:PG
- Manufacturer:CAM-MUTUAL
Advantage
・Cantilever structure separating driving mechanisms and cartoning sections, which ensures easy access for cleaning and inspection purposes
・Silent machine running and no slippage of machine movement timing by means of mechanical cam drive. No damage onto
parts with overload detection effectively executed

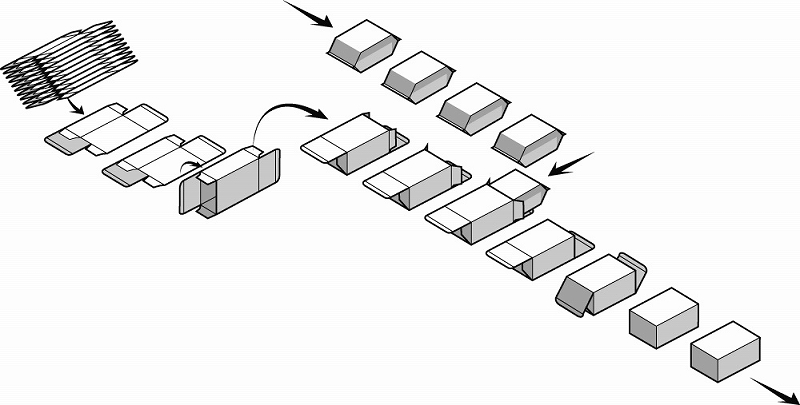

・Positive carton erection with twin blade inserted into carton, which enables correct erection especially of cubic cartons or those lacking in firmness
・Perfect product introduction guaranteed by the insertion of unique pusher head and moveable mouthpiece
・Wide range of carton dimensions applicable (See spec below.)
・Mechanical Memory® system enables easy size changeover with high reproducibility
Specification
Applicable product | Pharmaceutical products, cosmetics, foodstuff and miscellaneous goods |
---|---|
Product style | blister packs, tube, bottle, soap, confectionary and retort packs |
Speed | 15 to 70 strokes/min. |
Carton dimensions | L100 to 300 mm W50 to 200 mm H25 to 120 mm |
Carton type | Aeroplane tuck-in, reverse tuck-in and four-flap closure |
Option | Leaflet folding and insertion device, product feeder, ink/emboss coder, others |
Machine dimensions | L4,000×W,1890×H1,800 mm |
Machine weight | Approx. 1,800 kgs |
Power supply | 2.5kW |
Compressed air | 17 NL/min |
